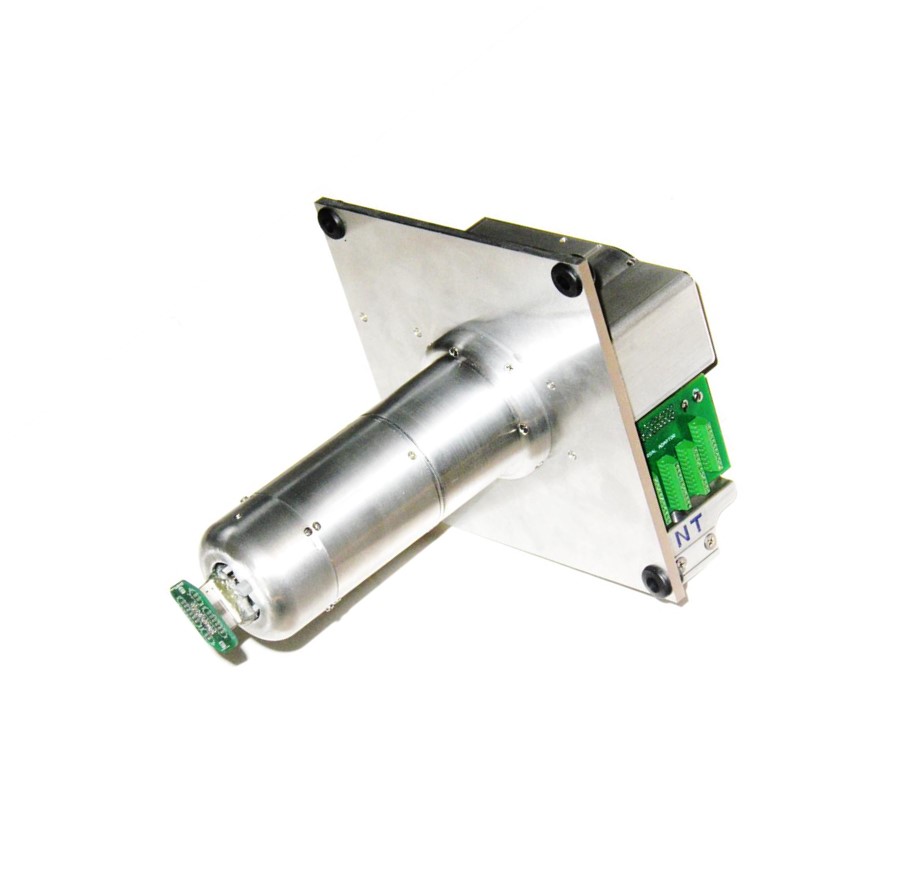

The motorized commutator utilizes a magnetic hall-effect sensor which detects any cable twisting when the animal moves. When twisting is detected the sensor signal a controller board which activates a motor to adjust the commutator in the appropriate direction to untwist the cable. These systems are designed specifically to be sensitive for mice and rats. NeuroTek is excited to produce the only commercially available motorized commutator which permits fluid delivery during electrophysiology
| GENERAL SPECIFICATIONS | |
|---|---|
| Part Number | CMTR-18-80-M-NT |
| Sensitivity | Low torque on the input connector. This means animals can be tethered with light weight cable, minimizing discomfort. |
| Channels | 18-80 Total depends on customer specification |
| Connector for animal leads | 3M or Airborn Connectors Flexible design |
| Connector for output to amplifiers or stimulators | 50 channel 3M connector off the shelf digikey part |
| Dimensions | 7"X7"X ~11" height varies depending on channel counts |
| Fluid delivery | yes, but requires adaptor |
| Motor | stepper |
| Mounting | Mounted using holes at the base of the commutator. |
| Required headstage gain | 1X |
