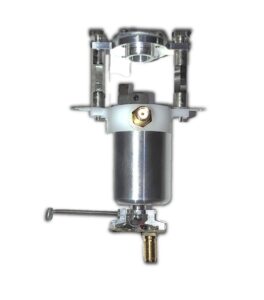

Non-Motorized Commutator with 2 channels for UCLA mini-microscopes and a thru hole for drug delivery
This commutator minimizes cable twisting with a low torque mechanism. It can be connected with mice or rats through coax cable in combination with UCLA3.0 and 4.0 scopes. This model comes with a torque arm to increase the engagement of the commutator. A thru hole and mounting mechanism is included to attach Instech fluid swivels. We recommend the use of a 1mm OD coax cable for this model for best engagement.
| GENERAL SPECIFICATIONS | |
|---|---|
| Part Number | CMTR-2-NM-F-UCLA-NT |
| Sensitivity | Low torque on the input connector. This means animals can be tethered with light weight cable, minimizing discomfort. |
| Channels | 2 for UCLA coax cables |
| Connector for animal leads | SMA Female |
| Connector for output | SMA Female |
| Drug Delivery mount | Mount to fit 375/D/25 for rats and 375/D/25LT Instech swivels |
| Dimensions | 4" L X 0.648" OD |
| Input Cable | Best used with 1mm coax (inquire if needed) |
| Mounting | Cap with small mounting brace |
| Testing | Pretested on UCLA4.0 mini microscope before delivery |
