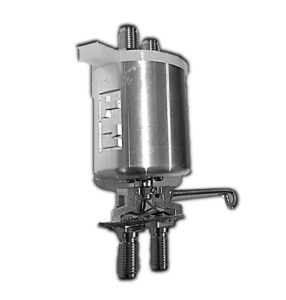

4 Channel Non-motorized Dual Coax Cable Commutator for UCLA Scopes
This commutator minimizes cable twisting with a low torque mechanism. It can be connected with mice or rats through use of two coax cables in combination with 2 UCLA 4.0 scopes. This model comes with a torque arm to increase the engagement of the commutator. We recommend the use of a 1mm OD coax cable for this model for best engagement.
| GENERAL SPECIFICATIONS | |
|---|---|
| Part Number | CMTR-4-NM-UCLA-NT |
| Sensitivity | Low torque on the input connector. This means animals can be tethered with light weight cable, minimizing discomfort. |
| Channels | 4 for 2 UCLA coax cables |
| Connector for animal leads | SMA Female |
| Connector for output | SMA Female |
| Dimensions | 4" L X 0.648" OD |
| Input Cable | Best used with 1mm coax (inquire if needed) |
| Mounting | Cap with mounting brace |
| Testing | Pretested on UCLA4.0 mini microscope before delivery |
