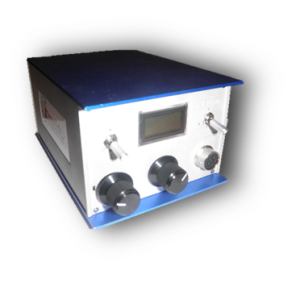

POW-HSTG-NT

The NeuroTek headstage power supply is a bench top tracking variable power supply. This power supply has a digital display to examine the voltage of each power channel and separate toggle switches for different power sources. Customized versions can have the addition of an isolated supply for powering amplifiers at 3.3V up to 5V.

POW-HSTG-NT

Property
Specifications
Size
6L” X 4W” X 3H”
NeuroTek Power
3.5V -10V, -3.5V to 10V, G, Adjustable, Powers Display
3.3V Aux Power
Optional, 3.3V, Isolated and not Adjustable (DG06S0503A
Delta electronics)
Display
Digital, no back light
Power Input
5 Pin DIN connector, PW300KA0012F01, AULT, Mouser
120VAC, 50-60Hz to DC(5V at 5.0A, +12V at 4.0A, -12V at 0.5A)
Headstage Compatible
1 NeuroTek GND, 1 AVATAR Ground
Headstage Compatible
Channels to HSTG-16-NT
Power Panel Output Socket
RM12BPE-5PH(71) Hirose
Power Panel Output
Plug
RM12BRD-5S(71) Hirose
NeuroTek Fuse
2 are located inside box (37311000410) Little Fuse Inc.
1.0 Ampere Max Current
3.3V Aux Fuse
Located on right side of box (0312001.HXP) Little Fuse Inc.
1.0 Ampere Max Current
Species
Product only intended for rodent use, this product is not approved for use in humans.
