HSTG-16-NT

The fundamental unit of processing in the brain is the neuron. One of the most frequently used tools to uncover the function of these neurons is in-vivo electrophysiology. Extracellular action potential recording (unit or spike recording) is a popular method to explore the function of such neurons and requires equipment to minimize artifacts which can be generated during head movements. NeuroTek produces a small, light weight, electrical circuit, called a headstage. When interfaced with electrodes, the headstage will sample electrical activity from the brain and protect them from interference.

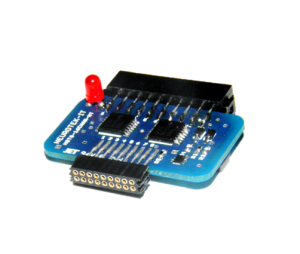

HSTG-18-NT

SpecificationDescription
GainGain
X1 unity gain
Other gains (X2, X5, X10) on request
Channel16
Species of useCan be used for recordings in rats or other non-human animals
PowerSources power from the NeuroTek supply (+8V/-8V/G source)
On-board power switchWhen both rails of the headstage reach the ideal voltage the headstage will switch on automatically. This protection ensures proper powering of the on-board amplifier
LightStandard light emitting diode colour is red, other colours are available.
CompatibilityCompatible with other electrophysiology systems, including amplifiers and A-D converters (please inquire)
DimensionsDimensions 1" X1"
Connector to commutator Standard connector is Harwin 20 pin latched connector.
Input connectorStandard connector is Mill-Max 18 pin
